CMC's patented 3D locking-bar descender delivers the ultimate in safety, control and performance, in one compact and lightweight device. The 3D features two sliding bars for optimum friction control and efficiency. The horn design works well with 13 mm rope and smaller, making it easy to add or subtract friction as needed throughout the evolution. The frame dimensions allow for larger rescue-sized carabiners to be used without any contact or friction with the rope. The descender can be loaded or unloaded while connected to your harness for rappelling or to an anchor for one- or two-person rescue lowers.

Specs

• Compact, lightweight design
• 3-stage “locking” center bar for added safety
• Ambidextrous design allows loading from top or bottom or controlling descent from either side of device
• Optimal rack length allows two rescue-sized carabiners to be attached without rope contact or friction from carabiner
• Large horn size allows for easy addition or subtraction of friction, even on larger 13  mm lifeline
• Personal descender or use for one person or two-person rescue lowers
• Simple to lock off device on either side
• Straight feed design does not put twists in rope
• Allows attachment of rope while device is connected to a harness or anchor
• 100% aircraft-grade aluminum and stainless steel components
• Made in USA, of domestic and foreign components

About CMC’s Super Black Finish
The CMC 3D, Rescue Rack, and Rescue 8 products feature an exceptionally long-wear proprietary finish because typical hard or soft anodizing on aluminum descenders eventually wears through. This finish also prevents transfer of material onto the rope, common with bare aluminum components. After years of heavy use, our products and test samples with this Super Black Finish continue to be used in CMC School classes without showing any indication of the finish wearing through.

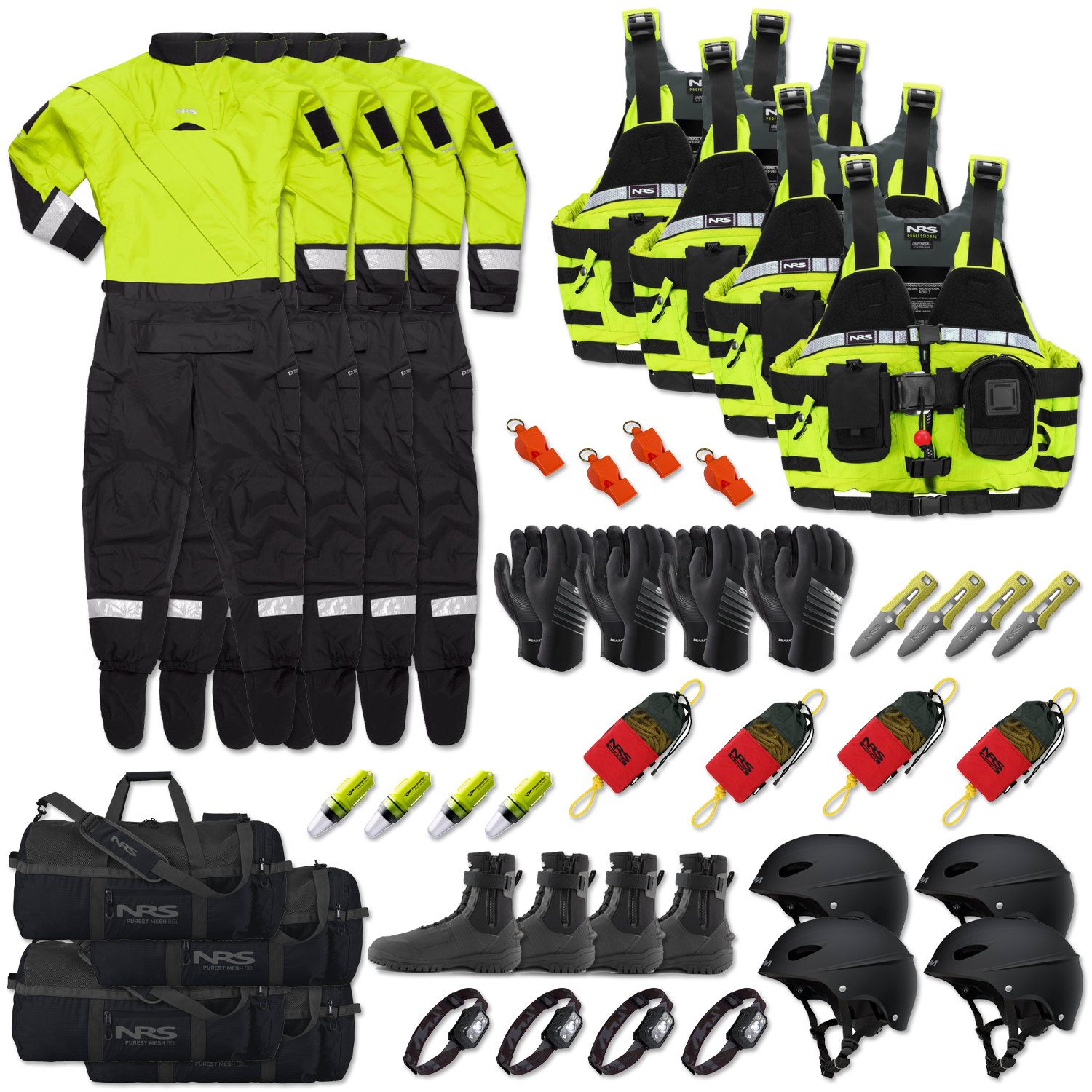

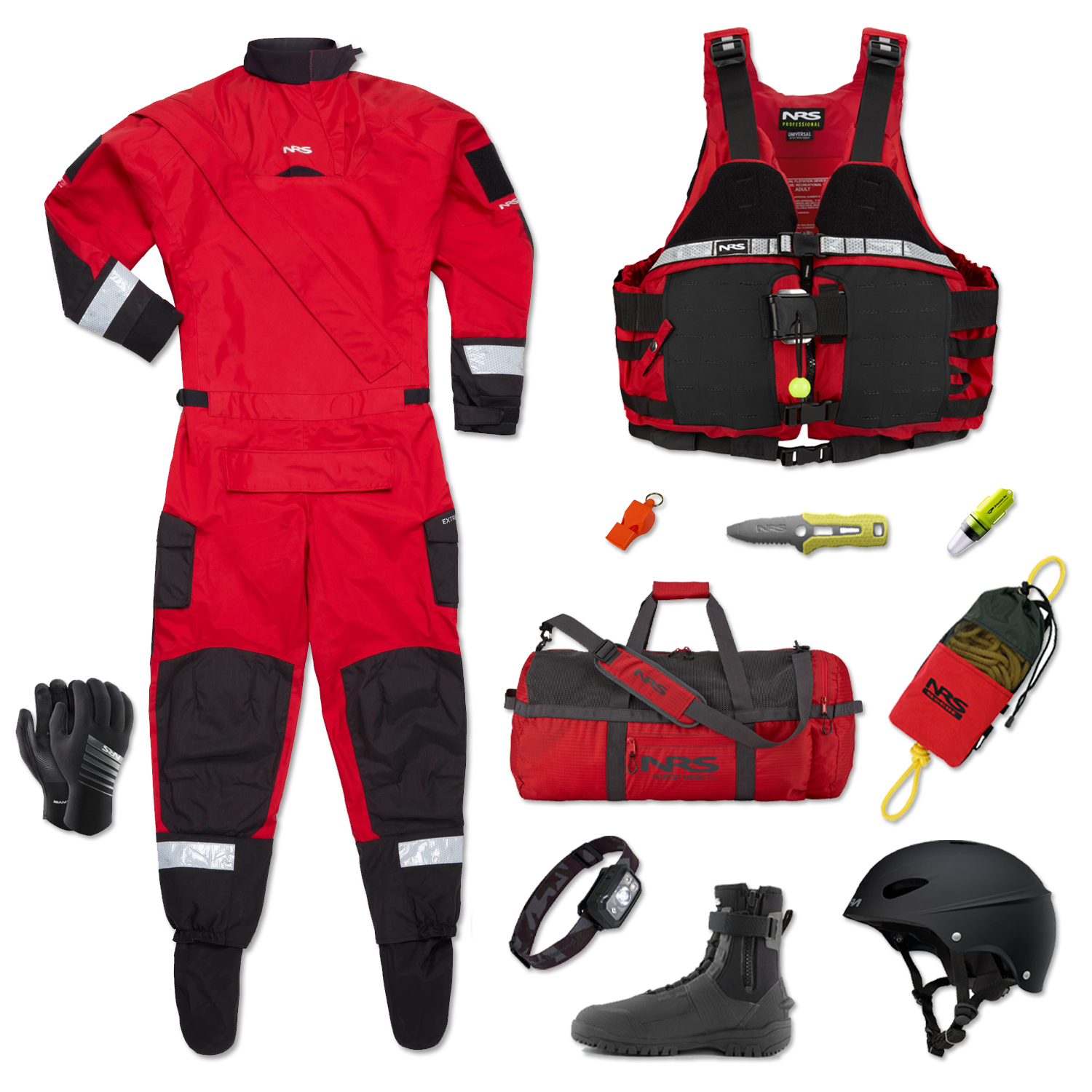

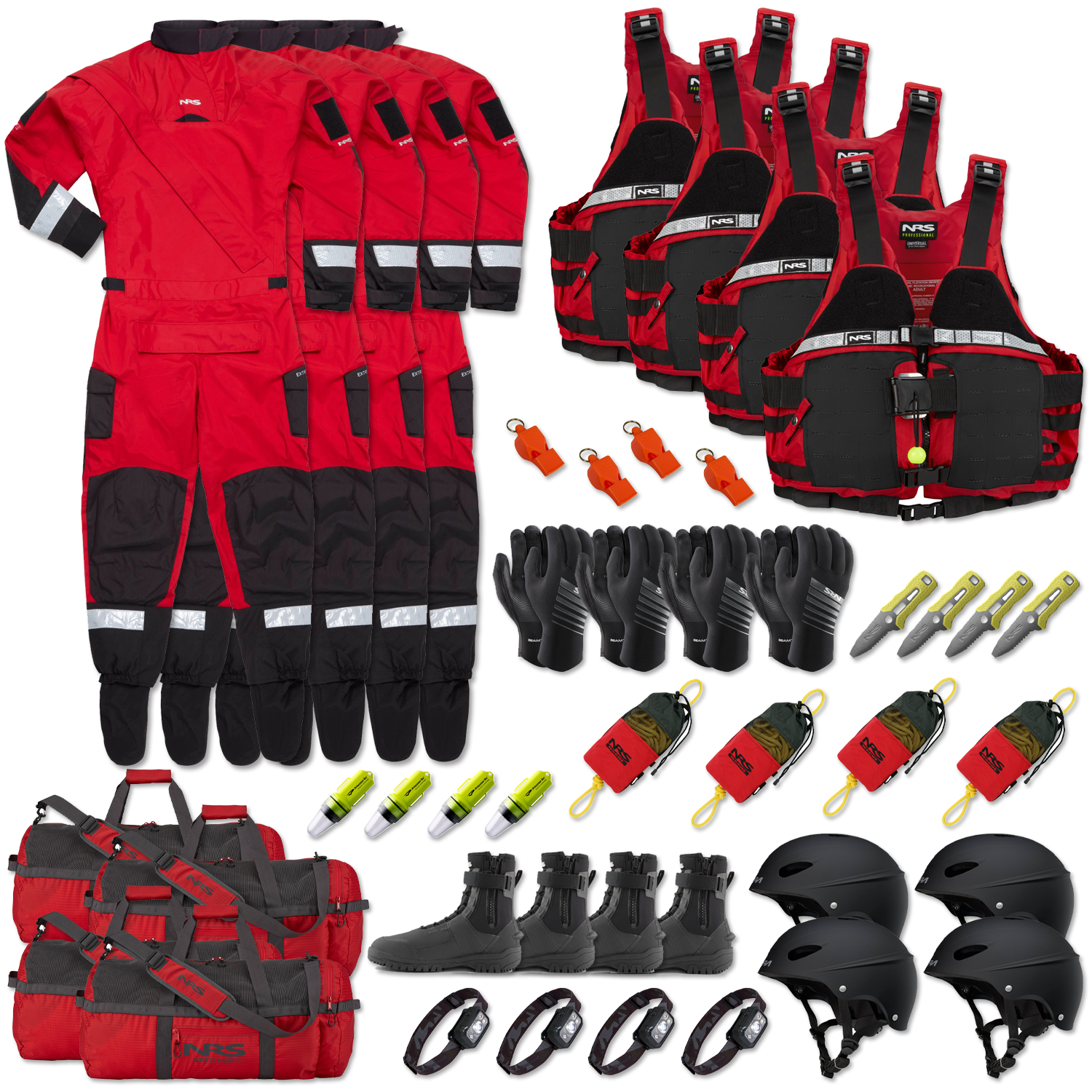

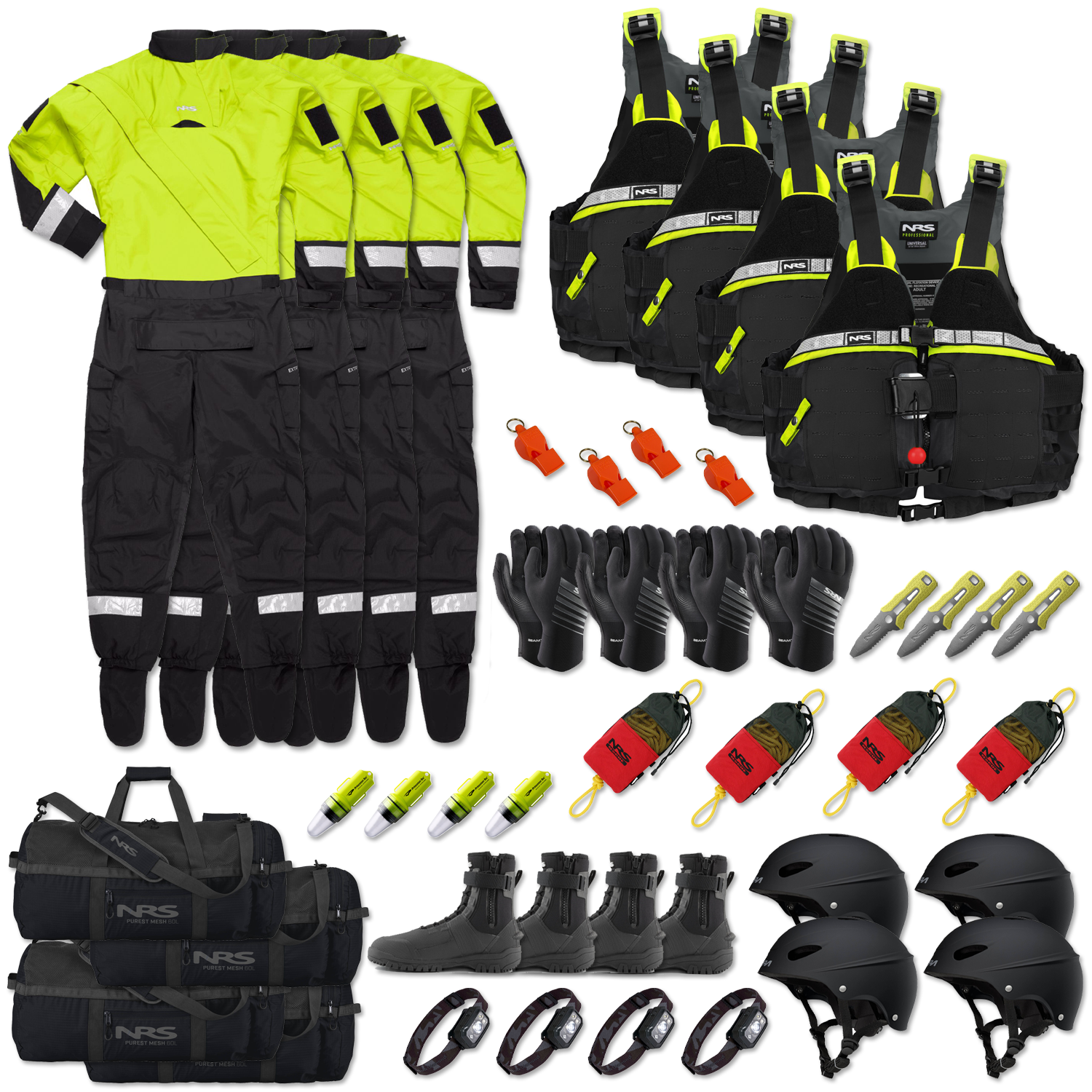

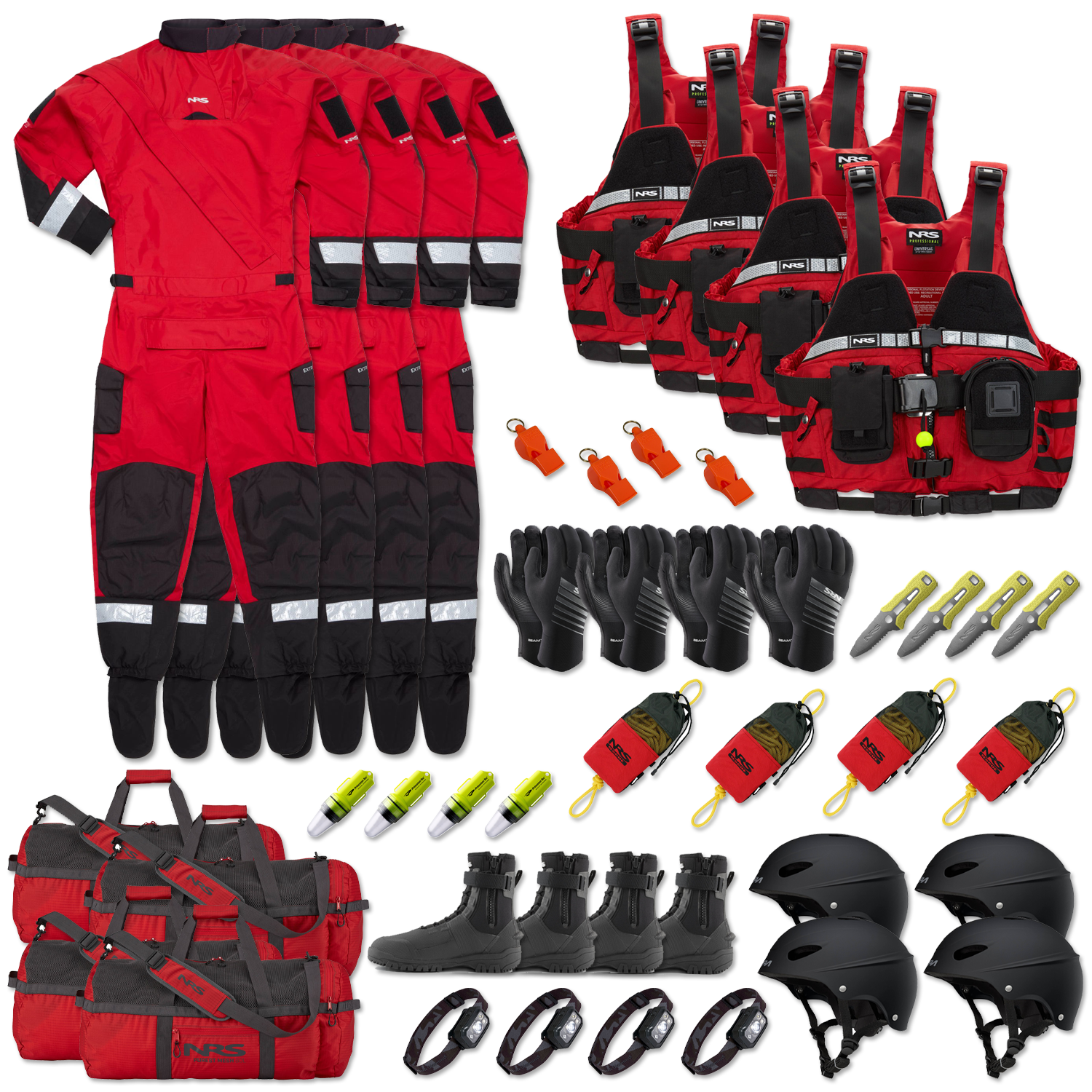

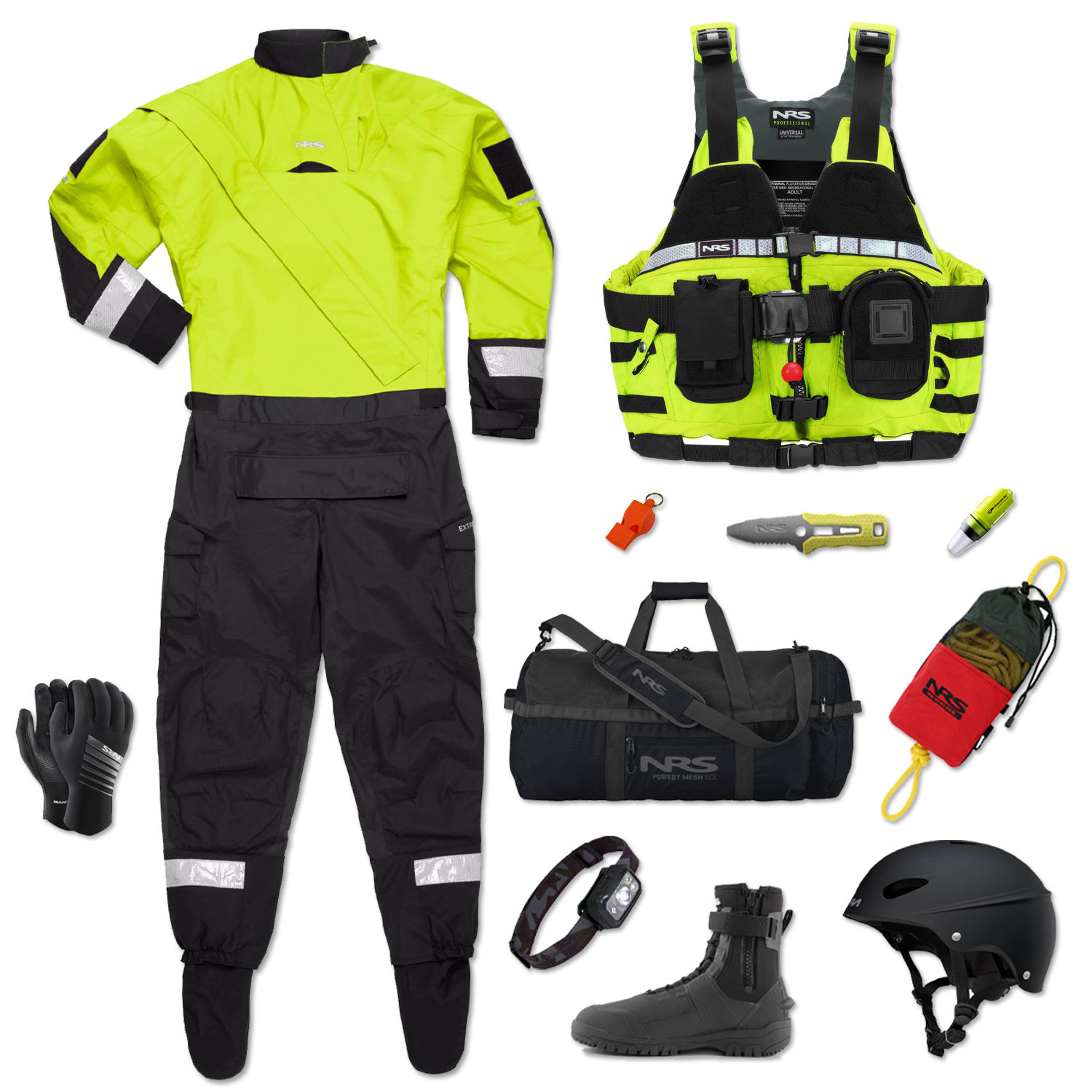

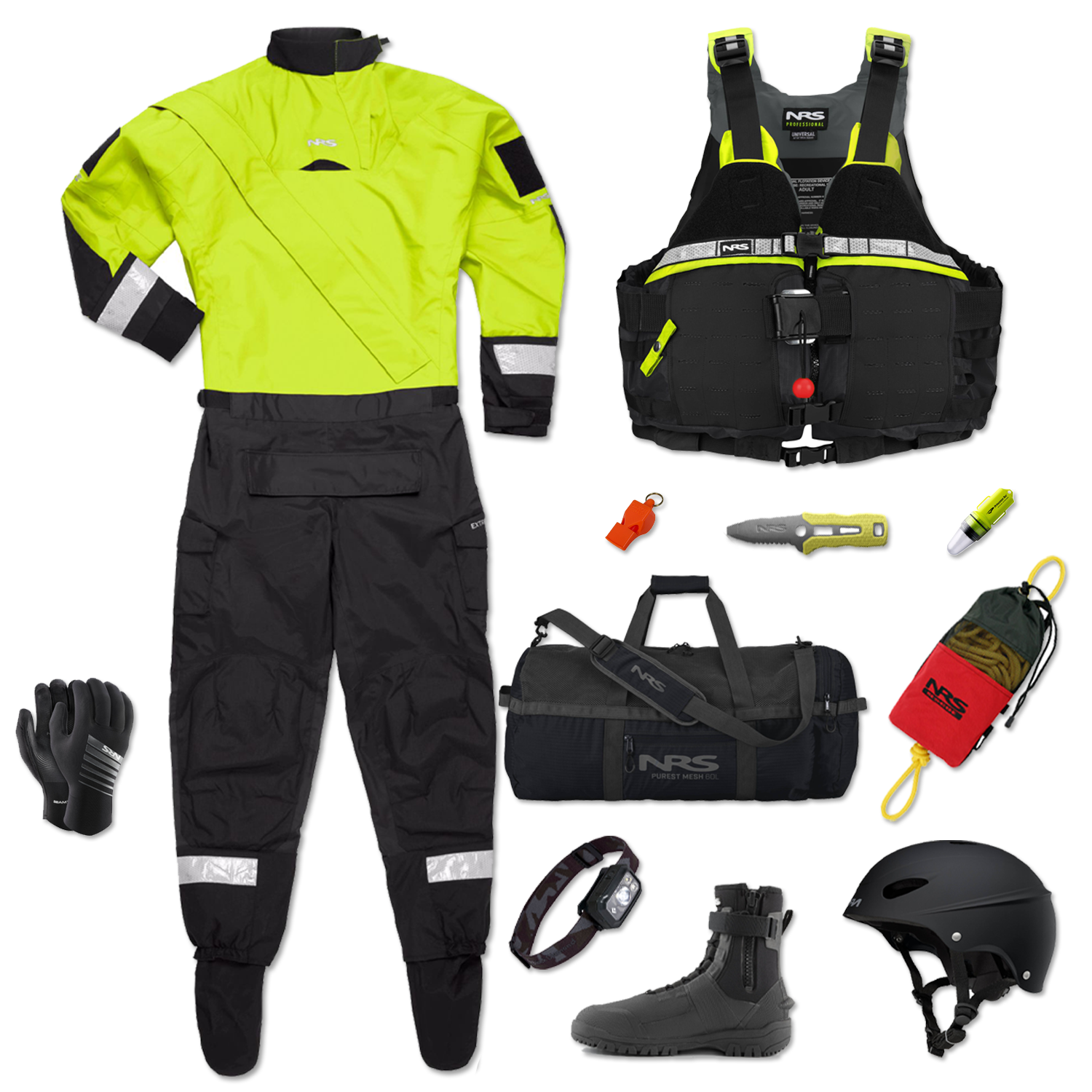

Our Water Rescue Tech Kit is designed for the Swiftwater Rescue Technician. This kit includes all the minimum items needed for working in swift and or flood waters.

*Please not that this is a special order item and may take 4-6 weeks for delivery.
*Once ordered please email sales@saferescue.com for sizing details.

WATER RESCUE TECH KIT INCLUDES:

Founded in 1978 as an American-made manufacturer and supplier of rescue equipment, California Mountain Company set out to provide the highest quality products to our customers. Weve come a long way since then, but weve never strayed from our mission. The limited edition 78 Pack commemorates our history and heritage, as well as our continued dedication to serving the search and rescue community. With its roll-top design, roomy interior and heavy duty nylon construction, this throw back to the scouting packs of yesteryear makes the 78 Pack the perfect bag for your everyday adventures.

Specs

• Roll-top design for quick and easy main compartment access
• Angled front zippered pocket for stowing smaller items
• Four external compression straps are perfect for carrying trekking poles, yoga mat, small tripod, fly rod, etc...
• Two lash tabs on bottom panel for securing extra gear
• Multi-loop attachment on front panel for hitching items or attaching carabiners
• Internal padded laptop sleeve: 10 W x 18 H
• Shoulder straps offer padded comfort and feature integrated carry handle
• Constructed from durable 1,000-denier Cordura nylon pack cloth
• WEIGHT 1 lb, 9 oz
• VOLUME 1,750 ci (28.7 l)
• DIMENSIONS 19 x 12 x 6 in (48 x 30 x 15 cm)

A rope access workhorse thats as durable as it is comfortable.

The ATOM Series, our most comfortable harness line ever, is the culmination of stripping harness design down to the basics and re-imagining a performance-enhancing tool for rescue and rope access. CMC has incorporated years of feedback from experts who spend long hours in a harness. In addition, the ATOM harness went through rigorous field-testing, resulting in a harness design that improves safety, comfort and workflow efficiency in all the ways you cant see, but feel.

Every detail in the ATOM Access Harness has been thoughtfully designed for the rope access professional. From the structure and attachment points to buckles, gear and accessory loops and other features, the ATOM delivers maximum comfort, workflow efficiency and durability in a lightweight and low-profile harness system.

Specs

• Improved architecture molds to the user for a lightweight, low-profile fit.
• Ergonomic design for maximum comfort and support:
• Padding constructed from dual density foam, laminated to optimize load distribution and apply the right amount of support only where needed.
• Waist and leg pads are constructed with rolled edges to provide additional comfort.
• Y-back construction and bridged front lift:
• Allows for optimal adjustment at each shoulder.
• Provides a secure fit while minimizing pressure from the harness at the neck.
• Constructed with polyester webbing:
• Keeps a supple hand for comfort and easy buckle adjustment.
• Water repellent and UV resistant material for lasting strength and durability in extreme weather conditions.
• Multiple accessory attachment points provide ample space for stowing and organizing hardware and tools.
• Gear loop over-braid is based on a 32-carrier polyester, rope sheath design that delivers a familiar texture and functional robustness.
• UL Certified to relevant ANSI Z359.11, CSA and NFPA 1983 (2017 ED) standards.
• Made in the USA of domestic and foreign components.

Core Features

• Large ID aluminum D-rings at the waist, sternal and dorsal attachment points keep the harness lightweight, yet allows room for multiple carabiners.
• Steel adjuster buckles are low profile and allow for maximum and efficient adjustment.
• Aluminum side D-rings provide lightweight work positioning attachment points.
• Chest Ascender HC by Climbing Technology
• Hard coat anodization resists wear
• Unique integrated design centers unit for efficient rope ascent and enables replacement.
• Molded gear loops with high impact, cold resistant, polypropylene core provide easy gear stowage and retrieval.
• Four Tool Loops: Two at the rear waist and one at each leg pad for additional gear stowage.
• Workseat attachment points located at the waist to connect the CMC Skysaddle.

NEW!
Delivers on performance without compromising comfort and safety.

The ATOM Series, our most comfortable harness line ever, is the culmination of stripping harness design down to the basics and re-imagining a performance-enhancing tool for rescue and rope access. CMC has incorporated years of feedback from experts who spend long hours in a harness. In addition, the ATOM harness went through rigorous field testing, resulting in a harness design that improves safety, comfort and workflow efficiency in all the ways you cant see, but feel.

Every detail in the ATOM Rescue Harness has been thoughtfully designed for the rescue professional. From the structure and attachment points to buckles, gear and accessory loops and other features, the ATOM delivers maximum comfort, safety and workflow efficiency in a lightweight and low profile harness system.

Specs

• Improved architecture molds to the user for a lightweight, low-profile fit.
• Ergonomic design for maximum comfort and support:
• Padding constructed from dual density foam, laminated to optimize load distribution and apply the right amount of support only where needed.
• Waist and leg pads are constructed with rolled edges to provide additional comfort.
• Y-back construction and bridged front lift:
• Allows for optimal adjustment at each shoulder.
• Provides a secure fit while minimizing pressure from the harness at the neck.
• Constructed with polyester webbing:
• Keeps a supple hand for comfort and easy buckle adjustment.
• Water repellent and UV resistant material for lasting strength and durability in extreme weather conditions.
• Gear loop over-braid is based on a 32-carrier polyester, rope sheath design that delivers a familiar texture and functional robustness.
• Multiple accessory attachment points provide ample space for stowing and organizing hardware and tools.
• UL Certified to relevant ANSI Z359.11, CSA and NFPA 1983 (2017 ED) standards.
• Made in the USA of domestic and foreign components.

Core Features

• Red webbing at the shoulders and the front leg drop provide higher visibility.
• Steel attachment points at the waist, sternal and dorsal position offer robust and low profile connection points.
• Cobra Quick-Connect Buckles at the legs and the right shoulder make donning quick and efficient.
• One-piece shoulder pad:
• Reduces harness twisting for easy donning.
• Bridges dorsal webbing for improved comfort at the neck.
• Flexible gear loops offer a low profile gear stowage solution especially when working in confined spaces.
• Workseat attachment points located at the waist to connect the CMC Skysaddle.

NEW!
Maximum comfort and support in a lightweight sit harness allows you to work freely and efficiently.

The ATOM Series, our most comfortable harness line ever, is the culmination of stripping harness design down to the basics and re-imagining a performance-enhancing tool for rescue and rope access. CMC has incorporated years of feedback from experts who spend long hours in a harness. In addition, the ATOM harness went through rigorous field-testing, resulting in a harness design that improves safety, comfort and workflow efficiency in all the ways you cant see, but feel.

Every detail in the ATOM Sit Harness has been thoughtfully designed for the rescue or rope access professional. From the structure and attachment points to buckles, gear and accessory loops and other features, the ATOM delivers maximum comfort, safety and workflow efficiency in a lightweight and low profile harness system.

Specs

• Improved architecture molds to the user for a lightweight, low-profile fit.
• Ergonomic design for maximum comfort and support:
• Padding constructed from dual density foam, laminated to optimize load distribution and apply the right amount of support only where needed.
• Waist and leg pads are constructed with rolled edges to provide additional comfort.
• Constructed with polyester webbing:
• Keeps a supple hand for comfort and easy buckle adjustment.
• Water repellent and UV resistant material for lasting strength and durability in extreme weather conditions.
• Gear loop over-braid is based on a 32-carrier polyester, rope sheath design that delivers a familiar texture and functional robustness.
• Multiple accessory attachment points provide ample space for stowing and organizing hardware and tools.
• UL Certified to NFPA 1983 (2017 ED).
• Made in the USA of domestic and foreign components.

Core Features

• Black webbing for low visibility.
• Steel D-ring at the waist offers a robust and low profile connection point.
• Soft Side Attachments provide work positioning while keeping the unit lightweight and low profile.
• Cobra Quick-Connect Buckles at the legs make donning quick and efficient.
• Molded gear loops with high impact, cold resistant, polypropylene core provide easy gear stowage and retrieval.
• Workseat attachment points located at the waist to connect the CMC Skysaddle.

The newest companion to the Arizona Vortex, the AZORP (Arizona Omni Rigging Pod) allows even greater versatility to the AZV system. The AZORP was developed by Reed Thorne and has undergone extensive testing and rigging applications with Ropes That Rescue around the world. This two-in-one rigging pod is a welcome addition to the AZV lineup and combines the versatility of having two component halves that can be used in combination, or separately, at different positions on the inner or outer AZV legs. Machined from one solid block of T-6 aluminum, it delivers superior strength with a sleek and simple design without using welds. The inner and outer AZORP pods can also be used together as a two-flange rigging pod in combination with an AZV leg compression member.
The AZORP Storage Bag features a quick-draw closure and an external carabiner loop. The main compartment has a separate sewn-in pocket to hold the AZORP quick pins. Constructed of tough, water-resistant 1,000-denier Cordura nylon.

Specs:

• Weight: 3.4 LB (1.6 KG)
• Dimensions (Each Pod): 6-3/8 X 4 IN (16 X 10 CM)
• Color: Orange/Blue
• NFPA Rating: General
• 3 Sigma MBS: 65 KN (14,612 LBF)

Kit Includes:

• 1 - AZORP Outer Pod (blue)
• 1 - AZORP Inner Pod (orange)
• 2 - Stainless Steel Quick Pins
• 1 - AZORP Storage Bag

Improved! As one of the most versatile tools in rope rescue, the CMC AZTEK ProSeries System reflects our philosophy of keeping rigging equipment simple, efficient, light, compact, and multi-purpose. Originally developed by Reed Thorne of Arizona-based Ropes That Rescue, the AZTEK (Arizona Technician’s Edge Kit) is used worldwide and offers more than 100 rigging solutions in a single bag. The CMC AZTEK ProSeries System is made in USA of US and foreign components.

This system now includes an updated AZTEK ProSeries Pack that has improved fabric durability, new reflective piping, and a fresh OD Green color. The pack is feature rich with 1000D nylon/Tarpaulin construction for abrasion resistance, mesh panel for ventilation and drying, Garage Pockets™ to protect cord, double-zippered top compartments, and tension lock buckles for carrying on the waist or thigh. Note: product videos may show previous pack model (no longer available in Coyote color).

Features

The CMC AZTEK ProSeries System is the first AZTEK system to be UL Classified to NFPA 1983 (2017 ED) – General Use – Manufactured System. The system is thoughtfully designed to support rescue teams and each component has been tested and proven to work efficiently in a multitude of lab and field scenarios. Everything comes pre-rigged and fully assembled for immediate deployment.

The set-of-fours includes 15.2 m (50 ft) of 8 mm AZTEK ProSeries Cord, which is CMC’s high-performance 100% nylon blend. These can extend to 3.6 m (12 ft) while providing a 4:1 or 5:1 mechanical advantage with a Minimum Breaking Strength (MBS) of 38 kN (8,542 lbf).

For a personal edge travel-restrict with nearly 15.2 m (50 ft) of adjustable travel, attach the carabiner of the personal end of the system to an appropriate anchor and restrict edge travel using the integrated Purcell connected to your harness. The sleeved web edge-pro helps protect the cord around anchors with abrasive surfaces.

Uses

Whether using the set-of-fours (SOFs) as a quick 4:1 or 5:1 M/A for a multitude of rigging applications, or for personal edge protection, the versatile AZTEK ProSeries System gives rescuers endless rigging solutions:

• Quickly adjusts litter attendant position
• High angle litter scoops
• Solo pick-off
• Easily pass knots
• Correct disoriented equipment under load
• Effortlessly transfer loads
• Promptly establish dynamic fixed brakes
• Pretensioned back-ties
• Redirect anchors
• Establish travel restriction
• Dynamic directionals
• Dynamic lowers
• Hauling systems
• High angle attendant tether
• Load-releasing hitch
• Personal mechanical advantage (PMA)
• Solo pick-off
• Tensioned guying

Contents

The CMC AZTEK ProSeries System comes fully assembled in the AZTEK ProSeries Pack and includes the following:

• CMC AZTEK Omni Pulley Set, (one blue, one orange) – UL Classified to NFPA 1983 (2017 ED)
• Quick Pin for AZTEK Omni Pulley
• AZTEK ProSeries Cord – 15.2 m (50 ft) of 8 mm hi-viz orange, 15 kN (3,372 lbf), Sewn-Eye Termination – 12 kN (2,698 lbf)
• AZTEK Edge-Pro Tubular Webbing, blue .6 m (24 in)
• ProTech™ Aluminum Auto-Lock Carabiner w/ removable keeper pin – 29 kN (6,519 lbf)
• AZTEK Bound-Loop Prusik, orange (6 mm) – 9 in
• AZTEK Bound-Loop Prusik, blue (6 mm) – 9 in
• AZTEK Bound-Loop Purcell, blue (6 mm) – 42 in
• Maillon Rapide Quick Link, Oval (7 mm) – 27 kN (6,070 lbf)

More is Possible

Introducing the all-new CLUTCH, the latest evolution in rescue and rope access hardware that enables the technical rope professional to do more with less. This multi-purpose device was designed and engineered in collaboration by two companies with a collective 90 year history in rope management under heavy loads: CMC, a company with roots in rescue and rope access, and Harken Industrial, a manufacturing company with roots in high performance sailing.

Suited to a multitude of rigging operations, the CLUTCH delivers efficient operation, ease of use, and optimal control. It moves seamlessly between anchor-based systems and personal use, offering unmatched versatility for the rope technician. With the CLUTCH, more is possible.

Features:

• Single wearable tool for efficient hauling, controlled lowering, smooth personal descent, easy ascending, belaying, and Twin Tension Rope Systems.
• Delivers up to 38% higher efficiency in hauling and ascending than a cam-style device: reducing changeovers.
• Moves seamlessly between anchor-based systems and personal use: reducing gear cache volume and weight.
• Combines the key features of personal descenders and load management devices: reducing equipment training and cost.
• Instantly transitions between hauling and lowering or ascent and descent without having to transfer the load.
• Allows main and belay lines to be mirrored, twin-tensioned, or nested in Double CLUTCH technique (handles controlled by single operator).
• Replaces 8 pieces of traditional equipment: pulley, rescue rack, anchor plate, load release strap, prusik cord, and 3 carabiners.
• The 11 mm CLUTCH and CMC’s G11™ Lifeline can be used together to build NFPA G-Rated systems using 11mm rope, saving space and reducing weight.
• The 11 mm CLUTCH is the only device compatible with 10.5 – 11 mm rope certified to NFPA 1983 General Use, ANSI, and EN standards.
• The 13 mm CLUTCH is compatible with 12.5 – 13 mm rope and certified to NFPA 1983 General Use and ANSI standards.
• Patented. Made in the USA.

Components:

• Stainless steel ratcheting and rotating sheave provides efficient and audible auto-locking progress capture.
• Rope loading/unloading is secured with an innovative double-latched side plate that is independent of the device‘s attachment point.
• Anti-Panic brake and force limiting features ensure operational safety and overload protection.
• Machined aluminum chassis clad with stainless steel wear guards ensures light weight and durability.
• Integrated becket allows for the direct connection of mechanical advantage components.
• Control handle has large sweet spot for smooth, progressive lowering and descent control.
• Included screw can be installed in the side plate to create closed rope systems for rapid deployment.

Certifications:

• 11 mm Gray CLUTCH:
  • NFPA 1983 (2017 ED)
    • GENERAL USE (G) MBS 40kN (8,992 Ibf) PULLEY
    • GENERAL USE (G), DESCENT CONTROL, ø 10.5 – 11 mm
    • GENERAL USE (G), BELAY DEVICE, ø 10.5 – 11 mm
  • ANSI/ASSE
    • Z359.4-2013
  • CE
    • EN 12841: 2006/C
    • EN 341: 2011/2A
    • EN 15151-1: 2012/8
• 13 mm Red CLUTCH:
  • NFPA 1983 (2017 ED)
    • GENERAL USE (G) MBS 40kN (8,992 Ibf) PULLEY
    • GENERAL USE (G), DESCENT CONTROL, ø 12.5 – 13 mm
    • GENERAL USE (G), BELAY DEVICE, ø 12.5 – 13 mm
  • ANSI/ASSE
    • Z359.4-2013

Downloads

User Manual
Inspection Procedure
PPE Inspection Form

Video

Designed for Emergency Rappel

In a class by itself, CMC offers the only NFPA Certified Uniform Rappel Belt available. Designed for everyday wear but with the performance needed for an emergency rappel or belay. Standard uniform wear for fire fighters, search and rescue, and SWAT personnel, the belt is constructed to the same exacting standards as our harness line and is the only certified uniform belt available. The belt uses 1-3/4 web that fastens securely without requiring any hook-and-loop material. The AustriAlpin D-ring COBRA buckle is manufactured from 7075aluminum alloy and features a built-in stainless steel D-ring (Buckle:18 kN / 4,000 lbf MBS, D-ring: 22 kN / 5,000 lbf MBS, straight pull). The buckle requires a two finger release and will not open when loaded. Included web keeper secures excess web at tail end of belt. Adjustable, one size fits most.

Note: This belt is not intended as a substitute for a harness.

Specs

Pat. 7,419,138

The design of our redesignedCSR2 (Confined Space Rescue) Pulley is stronger yet lighter and incorporates 7/16 in (11 mm) to 1/2 in (13 mm) lifesafety rope. Ideal for industrial applications as well as many rescue operations, the CSR2 uses our proprietary, patented locking system, which eliminates a toothed cam or Prusik so it can be easily and safely released while under load. (The absence of the toothed cam means that even if the system is fully collapsed and pulled tight, it can still be released easily. Systems using a toothed cam must be raised even further before the cam can be released, which can be impossible if the system is fully collapsed without thinking about this problem ahead of time causing potential problems with the load on the system becomingstuck.) An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size carabiners.

Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.

Specs

• All-new stronger, lighter-weight design
• Compatible with 11-13mm life safety rope
• Meets NFPA 1983 (2017 ED) General Use
• CSR2 Pulley MBS 46 kN (10,341 lbf)/CSR2 Double Pulley MBS 45 kN (10,116 lbf)
• Machined from solid block of aircraft-grade aluminum
• Made in USA

Self-braking descender for rope work, the evolution of the SPARROW 200 descender has been developed for high workloads. The improved 200R model features a redesign of the spring-operated braking spur that has been modified so that it orients toward the direction to which the rope is being paid into the device. The advantage of this modification provides even smoother control of decent speed as well as improved handling of the rope. It allows the operator to lower on the working line, to position on the working line and to ascend the same rope. It is ideal in the event of assisted lowering of two people with the device installed at the anchor (the operator lowers the rescuer and the person being rescued) or for simultaneous lowering of two people (rescuer lowers themselves with the injured person).

To be used only with static and semi static ropes – EN 1891 type A – Ø 11mm.

Field of application:

• Rescue descender certified to EN 341:2011-2A, work load limit 200 kg with a maximum descent height of 180 m, only to be used with the TEC STATIC PRO rope – Ø 11 mm;
• Rope adjustment/ descender device certified to EN 12841:2006-C, work load limit 210 kg, only to be used with EN 1891 type A – Ø 11 mm ropes.

Technical Features:

• Equipped with a breaking spur that creates additional friction on the rope, when used during the descent, without the use of an additional connector. The shape of the braking spur has been improved in order to have even more effective control of the rope;
• A multifunctional command lever with an automatic recall system that allows the operator to descend at a controlled speed and stop the descent at the desired point without the need to tie off the device;
• An EBS safety system (Extraordinary Braking System) that is activated if the lever is accidentally fully opened, reducing the speed of descent instead of increasing it;

Equipped with a safety lever on the movable flange that facilitates the insertion of the rope.

Large-capacity transport bag

The only load cell that is UL Classified to NFPA 1983, General Use.

This compact device can measure force up to 20 kN, and with two sampling modes, the ENFORCER LOAD CELL monitors systems and logs drop testing in high resolution. Along with unique features such as Bluetooth connectivity and swivel attachment points, the Enforcer stands in a class of its own.

Specs

• Lightweight aluminum construction.
• Compact, portable design for in-line use in rope rigging systems. General Use rated.
• Swivel attachment points to diminish potentially dangerous torsional and off-axis forces.
• Two sampling modes – Slow for monitoring, Fast for drop testing.
• Measures force in kN, lbf and kg.
• UL Classified to NFPA 1983, General Use (CMC Enforcer Load Cell model only!)
• 3 Sigma MBS 42 kN (9,442 lbf)

The Enforcer App for iOS devices greatly increases capabilities of the Enforcer Load Cell, adding the ability to monitor static forces remotely and record dynamic events at up to 500 samples per second. With the app you can also view a graph of the force or send as an email attachment for further analysis. App developed by Ourea slf. Sold separately through the App Store. Click here to watch the Enforcer App Video!

Compatibility

Requires iOS 7.0 or later. Compatible with iPhone 4S, iPhone 5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Wi-Fi (3rd generation), iPad Wi-Fi + Cellular (3rd generation), iPad Wi-Fi (4th generation), iPad Wi-Fi + Cellular (4th generation), iPad mini Wi-Fi, iPad mini Wi-Fi + Cellular, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, and iPod touch. This app is optimized for iPhone 5.

The Harken Battery PowerSeat^® Ascender unveils new possibilities in enclosed and confined space rope access and rescue. The PowerSeat delivers a powerful 300 kg (661 lb) hoist capability with controlled sensitivity to perform the most delicate rescues, or precise maneuvering of materials and components for installation or maintenance. Developed specifically for rope access and winching applications, it provides a lightweight, prolonged usage, powered ascender and utility winch.

The Battery PowerSeat operates comfortably in both outdoor and indoor environments where engine emissions are restricted. It provides a level of operator safety and comfort that directly increases productivity and efficiency.

Suitable for wind turbine blade cleaning, confined space and indoor rope access and rescue applications. The PowerSeat can be used in tandem rescues to a maximum rated load of 300 kg (661 lb).

• Battery – Uses a 48V lithium-ion battery with a BMS (Battery Management System) to preserve its useful life. Certified IP54

• Brake – Braking system controls descent and provides workers protection against free-falls. The encapsulating jaw cover protects fingers and clothing from catching in the winch

• Durability – Stainless steel load-carrying gears and pins provide strength and durability. Sealed gearbox and high-load ball bearings reduce friction under load, are corrosion resistant, and do not require lubrication

• Speed Control – Operates using a fail-safe dead man’s switch to control ascent speed, up to 14 m/min (45.9 ft/min)

• Ergonomic design – Designed to stay in an upright position, conserving operator energy by eliminating the constant adjustments needed to maintain work position

• Maximum Rated Load (MRL) – Max rated load is 300 kg (661 lb)

• Maximum Ascent Speed – 14 m/min (45.9 ft/min)

• Certification – Certified to EN13157:2009 (Machinery Directive Harmonized Standard) and independently verified by Bureau Veritas

The Harken Gas PowerSeat Ascender has revolutionized working at height, providing the worker with the ability to ascend quickly, stay in position longer, and work in comfort. The PowerSeat provides quality, convenience, safety, and is the best solution for completing a work at height task on hand. The PowerSeat is simple to use and ideal for a wide range of applications, including: wind turbines, building exteriors, search and rescue—not only as a powered ascender, but also as a powerful portable winch or hauler. The portable unit weighs just 14 kg (31 lb), so it’s easy to carry around, yet strong, durable, and corrosion-resistant.

Fuel consumption varies with weight and usage. Motor is extremely efficient and only uses a few liters of unleaded gas with four-stroke mix for a full day’s work at height.

Specs

• Speed Control – Operates using a fail-safe dead man’s switch to control ascent speed, up to 15 m/min (49.2 ft/min)
• Ergonomic design – Designed to stay in an upright position, conserving operator energy by eliminating the constant adjustments needed to maintain work position
• Brake – Braking system controls descent and provides workers protection against free-falls. The encapsulating jaw cover protects fingers and clothing from catching in the winch
• Durability – Stainless steel load-carrying gears and pins provide strength and durability. Sealed gearbox and high-load ball bearings reduce friction under load, are corrosion resistant, and do not require lubrication
• Certification – Certified to EN13157:2009 (Machinery Directive Harmonized Standard) and independently verified by Bureau Veritas

This man-riding portable capstan winch is designed for confined space retrieval or for use with davit systems using an unlimited length of fibrous rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. The LokHead can be used anywhere a load needs to be lifted and lowered. Rigged to a tripod, it can be used for confined-space rescue, for load moving/hauling, and man-riding. The Harken LokHead Winch weighs 9.30 lbs (4.200 kg) and offers a 40:1 power ratio with 2 gears.

The Harken PowerSeat‚ is a groundbreaking in-seat powered ascender/descender for vertical rope access. Operated by gas, the PowerSeat‚ is designed to stay in an upright position, allowing technicians to work comfortably at height and to complete tasks quickly. Safety is paramount. A dead man‚ switch controls ascent speed up to 15 m/min (49.2 ft/min), while a fail-safe braking system controls descent and prevents free-falls. The Harken PowerSeat‚ is built of strong, noncorrosive materials and weighs just 30.80 lbs (14.000 kg) for easy hand carry. Maximum working load is 601.80 lbs (273 kg), allowing two-person rescue operations. It is CE certified to Machinery Directive and verified by Bureau Veritas. The PowerSeat‚ ‚ many applications include: mountain rescue, industrial maintenance, wind turbine & offshore construction, engineering and inspections, marine & rigging. It can also be used in horizontal configurations to haul material or fixed -point rigging for rescue.

The PowerSeat Battery Powered unveils new possibilities in enclosed and confined space rope access & rescue. The PowerSeat Battery Powered quietly delivers a powerful 661.4 lb (300 kg) hoist capability with controlled sensitivity to perform the most delicate rescues, or precise maneuvering of materials and components for installation or maintenance. Developed as a requirement in industry, it provides a lightweight, prolonged usage, powered ascender and utility winch. With the ability to operate comfortably and confidently in oxygen and ventilation starved environments it provides a level of operator safety and comfort that directly increases productivity and efficiency. Suitable for blade cleaning, confined space and indoor rope access and rescue applications. *Must be used with a Fall-Arrest system
