The new PMI Advance Tech HX Haul System provides an extremely strong and versatile haul system. Weighing around 3 pounds, this kit is pre-rigged as either a 4:1 or 5:1 mechanical advantage system. Just flip the kit end to end for either advantage as needed. Also included are two SMC Lite Steel carabiners, a 5mm oval screw link, and a PMI accessory cord lanyard which releases or sets the progress capture cam. This entire kit comes in a compact storage bag and is everything you need to quickly deploy a strong mechanical advantage system.

Specs

• Pre-rigged system provides either a 4:1 or 5:1 mechanical advantage
• Built-in progress capture system
• Features the SMC Advance Tech HX and Tech Mate pulleys
• Both pulleys made from high quality anodized aluminum
• Kit includes 10 meters of 9mm PMI Classic Professional EZ-bend rope
• Pulleys can accommodate rope diameters from 7mm to 12.5mm
• Berry Compliant
• Made in the USA

Compact and strong, this pre-rigged haul system can be rigged as a 4:1 or 5:1; just flip it end to end. The end of the PMI 9 mm EZ-Bend is attached to the system instead of free floating.

PMI‚ new Grain Evacuation Tool the GET Coffer Dam Solution, is a complete rescue solution designed and manufactured by Montezuma Rescue Innovations. The GET is made up of six interlocking aluminum panels used to form a circle and isolate an entrapped person from the grain surrounding them. Included in the solution is the Grain Portr - a revolutionary tool used to quickly remove the grain inside the GET, thereby freeing the subject from the grain. Also included are probe poles that make a target ring surrounding the subject to accurately position the GET panels.

Available as a standalone device, the Grain Portr works with any style cofferdam. Allows the rescuer to quickly remove grain from inside the cofferdam, thereby freeing the subject. Requires no electrical power. Very compact and lightweight making it ideal for use in a confined space such as a grain bin. No participation from the patient is required as it is when using buckets. Removes grain faster than a typical vacuum and creates very little dust, especially inside the cofferdam.

The Harken Power drill adaptor is designed to work with a 1/2 right

This man-riding portable capstan winch is designed for confined space retrieval or for use with davit systems using an unlimited length of fibrous rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally releasing. The LokHead can be used anywhere a load needs to be lifted and lowered. Rigged to a tripod, it can be used for confined-space rescue, for load moving/hauling, and man-riding. The Harken LokHead Winch weighs 9.30 lbs (4.200 kg) and offers a 40:1 power ratio with 2 gears.

The Harken PowerSeat‚ is a groundbreaking in-seat powered ascender/descender for vertical rope access. Operated by gas, the PowerSeat‚ is designed to stay in an upright position, allowing technicians to work comfortably at height and to complete tasks quickly. Safety is paramount. A dead man‚ switch controls ascent speed up to 15 m/min (49.2 ft/min), while a fail-safe braking system controls descent and prevents free-falls. The Harken PowerSeat‚ is built of strong, noncorrosive materials and weighs just 30.80 lbs (14.000 kg) for easy hand carry. Maximum working load is 601.80 lbs (273 kg), allowing two-person rescue operations. It is CE certified to Machinery Directive and verified by Bureau Veritas. The PowerSeat‚ ‚ many applications include: mountain rescue, industrial maintenance, wind turbine & offshore construction, engineering and inspections, marine & rigging. It can also be used in horizontal configurations to haul material or fixed -point rigging for rescue.

The PowerSeat Battery Powered unveils new possibilities in enclosed and confined space rope access & rescue. The PowerSeat Battery Powered quietly delivers a powerful 661.4 lb (300 kg) hoist capability with controlled sensitivity to perform the most delicate rescues, or precise maneuvering of materials and components for installation or maintenance. Developed as a requirement in industry, it provides a lightweight, prolonged usage, powered ascender and utility winch. With the ability to operate comfortably and confidently in oxygen and ventilation starved environments it provides a level of operator safety and comfort that directly increases productivity and efficiency. Suitable for blade cleaning, confined space and indoor rope access and rescue applications. *Must be used with a Fall-Arrest system

The PowerSeat‚Äö Battery Powered Compact offers the user the versatility of a lightweight portable winch that can be used as a mechanical ascender for work at height, rescue & winching applications. The PowerSeat‚Äö Battery Powered Compact Compact has been developed in response to our customers, particularly in the Rescue and Utility Winching / Lifting markets. The primary advantage the PowerSeat‚Äö Compact offers is the short stem allowing the operator to get closer to the anchorage point. *Must be used with a Fall-Arrest system

Harken Powerseat, Replacement Battery

The Harken Riggers Winch provides the user with a lightweight, CE certified, portable winch mounted to a robust adaptor plate. The Harken Riggers Winch weighs 15.40 lbs (7.000 kg) with a 1/2 ton working load limit, the 2 speed winch magnifies the operator pulling power by up to 40 times. The multiple mounting options provide versatility when working in difficult or remote environments.

Specs

The Hurley Picket Anchor System is a portable anchor system and can be used for the following applications: personal fall arrest, restraint, work positioning, suspension, and rescue. A portable anchor may be necessary when existing natural or manmade anchors are absent or insufficient. The Hurley Picket Anchor System optimizes the pullout capacity of the system through its patented design and precision manufacture process. The breaking strength of the anchor plate and pickets are well in excess of 40 kN as individual components*. When used in a system, the use of rope, webbing or slings will likely limit the breaking strength of the system. In addition, soil conditions will dictate the total holding strength of the system. An understanding of all components to be used in the system, soil conditions, and a careful estimation of the load to be placed on the system is essential for safe operation.

Includes

• 1 aluminum Anchor Plate with hard anodization
• 3 Stainless Steel Pickets
• 1 Striking Cap
• 1 Removal Eye Nut
• 1 Carry Bag

Features

• Developed and patented (PATENT #9,133,594 B2) by a DC fire fighter, the Hurley Picket Anchor System relies on a rigid interface between anchor plate and pickets allowing each picket to be loaded equally and instantaneously, greatly increasing pull-out capacity over a lashed or windlass picket anchor
• Sets up in a fraction of the time required by a traditional windlass system, improving rescue operation efficiency
• Ease of use and simplified set up reduces training time
• Vertical Picket orientation and spacing is in accordance with a study conducted by an international industrial fabrics association on pull-out capacity of tent stakes
• Made in USA of US and foreign components

*40 kN WARNING: Local soil conditions will dictate the total holding strength of the anchor system. It is up to the user to understand the soil types and conditions present in the areas where the anchor system will be deployed and determine the impact on holding strength.

A $50 flat rate shipping fee applies to this product.

Specs

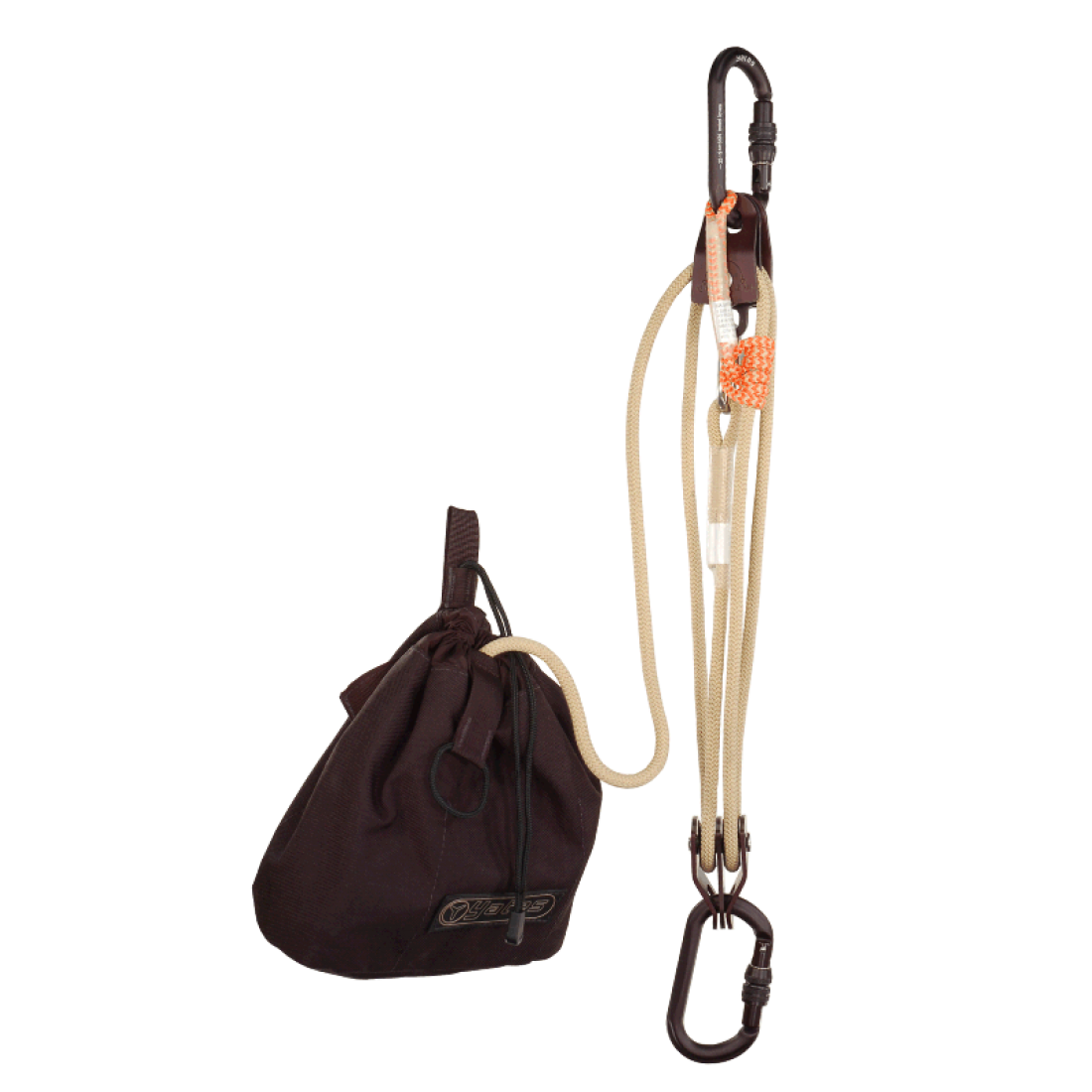

The same haul advantage as the Deluxe system, but in a lighter package. The pre rigged 4:1 or 5:1 haul system come with SMC’s new JRB mini pulleys.

Specs

• 1 SMC JR Pulley and 1 SMC JRB Pulley
• 2 SMC Aluminum Carabiners
• 10 m, 7 mm Tuff Cord
• 1 m, 5 mm Accessory Cord
• One 5 mm Oval Screw Link
• 1 Storage Bag (Blue)

PMI‚ Ladder Rescue Kit is designed for rescuing a worker in the event of a fall with minimal prior rescue training. The system is simple to deploy using the existing or a temporary anchor point. The Rescue Ladder System allows the victim to climb efficiently and safely with the added safety of the rope grab system. The PMI Ladder Rescue Kit is equipped with a fast drop in 18‚ foot ladder with a locking ANSI steel carabiner for quick attachment. The added rope grab system allows the victim to climb efficiently and safely reducing the risk of a secondary fall. The fast drop in system features a simple but rugged roll top bag with reflective lettering. This highly visible bag makes this rescue ladder easy to find in emergency situations. System Features:

Radium Release Hitches have been proven to out-perform load release straps time after time. The Radium has greater extension (9+ ft) and better control and it can never fuse together under shock load the way that load release straps can. Carabiners are part of the system, simplifying your rigging.

This kit contains the minimum personal equipment an individual rescuer should have in his gear pack, including personal protection equipment (PPE) for the head and hands. CMC offers the kit with one full-body ATOM Rescue Harness.

Includes

• Personal Gear Bag
• Pro Pocket
• ATOM Rescue Harness
• ProTech Auto-Lock Carabiners - Red (3)
• Rescue 8
• Multi-Loop Strap - Large
• KASK SuperPlasma HD Helmet
• ESS Striketeam XTO Rescue Goggles
• Riggers Gloves
• Princeton Tec EOS II Headlamp
• AZ Bound-Loop Prusik - Long (1), Short (1)
• Rope Rescue Field Guide

Specs

Tandem prusiks are a common tool for belaying heavy loads. This kit has everything you need to set up a Tandem Prusik Belay, including the Radium Release Hitch. Read about the advantages of the Radium Release Hitch below.

Specs

• Includes a PMI Radium Release Hitch Kit
• 3 SMC PMP pulley
• 2 8 mm Sewn Prusiks
