Tripods

This is the Brite clear anodized, Inner Leg to the AZV system sold separately as a replacement item. The AZV Kit comes equipped with three Inner Legs (and seven Outer Legs). The Arizona Vortex is known as the father of all portable artificial high directional systems (AHD) with the versatility to be configured and utilized as a tripod, bipod and monopod when purchased as the all-inclusive kit. Raptor Feet and Flat Feet are not included with the Inner Leg.

Specs

So named from its development in the rugged Red Rock highlands of northern Arizona, the Arizona Vortex (AZV) multipod was created from years of trial and error. Having worked with crude but functional lashed timber frames at Sedona-based Ropes That Rescue, Reed Thorne developed the AZV with the help of Rock Thompson at Rock Exotica. The Arizona Vortex represents the essence of at-the-edge frames, which no standard multipod can match today.

The father of all portable artificial high directionals (AHD)s, the AZV is a tripod, bipod and monopod in one all-inclusive kit. Its precision machined two-piece head can be rigged as a standard tripod or, in advanced applications, as an A-frame, Sideways A-frame, Gin Pole or a multitude of other configurations. The tripod can be formed into an Easel A-frame with adjustable leg lengths. The versatile third leg allows rescuers to set up an artificial high directional in virtually any urban, industrial or wilderness application. On A-frame and Easel A-Frame applications, pulleys can be attached using provided quick-pins directly into the Head Set without using carabiners, eliminating valuable lost headspace and working clearance. The AZV is ideal for use with high lines and tracking line offsets. The extra attachment points also work well for rope access where several lines may be needed over the edge. Both the Raptor and Flat feet sets are included to provide secure footing options on varying terrain and industrial surfaces.

Also Included

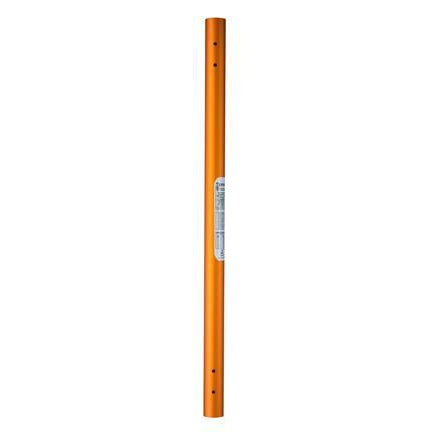

This is the anodized Outer Leg to the AZV system sold separately as a replacement item. The AZV Kit comes equipped with seven Outer Legs (and three Inner Legs). The Arizona Vortex is known as the father of all portable artificial high directional systems (AHD) with the versatility to be configured and utilized as a tripod, bipod and monopod when purchased as the all-inclusive kit. The Raptor Foot and Flat Foot are not included with the Outer Leg.

Specs

This aluminum tripod, features two head-mounted pulleys to save valuable vertical space, increasing the working height of the tripod. Equipped with a quick-mount bracket for a DBI/Sala winch or SRL and safety chains, the legs are adjustable and lock into place, making the tripod easier to set up. Fitted rubber safety shoes with spiked edges provide slip-free footing. Two eyebolt anchorage points are included. The rated working load is 350 lb (159 kg) for work support and 310 lb (141 kg) for fall arrest. Maximum height to eyebolt is 9 ft (2.7 m). Minimum height is 7 ft (2.1 m). Storage Length: 8.5 ft (2.6 m). Weight: 56 lb (25.4 kg).

Specs

• DBI/SALA Aluminum Tripod Accessories
• Quick-Mount BaseUsed to add accessories to a DBI/SALA tripod.
• Carrying Bag For carrying and storage.

A CERTIFIED SELF-TAILING, MAN-RIDING CAPSTAN WINCH WITH THE SECURITY AND SAFETY OF AN INNOVATIVE CAPTIVE HEAD

The Harken LokHead Winch is a man-riding portable capstan winch specifically designed for confined space rescue retrieval or for use with davit systems using an unlimited length of life safety rope. The captive head allows the winch to be used safely, and keeps the rope from accidentally coming off the winch and releasing. The LokHead Winch Kit comes complete with a robust stainless steel mounting plate and hardware, tripod adapter, winch handle, a CMC FastLink™ adjustable strap with two CMC ProTech™ Auto-Lock Carabiners and CMC sewn attachment loop for anchoring, and a rugged, waterproof carry case; providing you with everything needed for a tripod setup.

Specs

• Diverse applications – The LokHead Winch can be used anywhere a load needs to be lifted and lowered. Rigged to a tripod, like an Arizona Vortex, Sked-Evac tripod, or most other tripods available, it can be used for confined space rescue, for load moving and hauling, and man-riding
• Lightweight – Weighing just 4.2 kg (9.3 lb), the LokHead Winch can be incorporated into tripod design without significantly increasing the overall system weight
• Ergonomic – Easy to rig and efficient, makes the most of the operator’s effort. The winch offers a 40:1 power ratio with 2 gears: low-load, high line speed; high-load, low line speed
• Operation – Can be driven manually with the provided 25 cm (10″) winch handle or can be used with a power drill
• Reliable – The braking system controls descent and provides workers protection against free-falls. The encapsulating jaw cover protects fingers and clothing from catching in the winch
• Versatile – Designed for use with life safety rope 10-12.7 mm (5/16-1/2 in) diameter and unlimited line length
• Maintenance is easy – Clean and grease regularly as described in the product manual
• Maximum Rated Load (MRL) – The max rated load is 500 kg (1,102 lb) for goods/equipment and 240 kg (529 lb) for live rescue loads
• Certifications – Certified to EN13157:2009 (Machinery Directive Harmonized Standard) for lifting goods/equipment and EN1496:2007 as a rescue lifting device

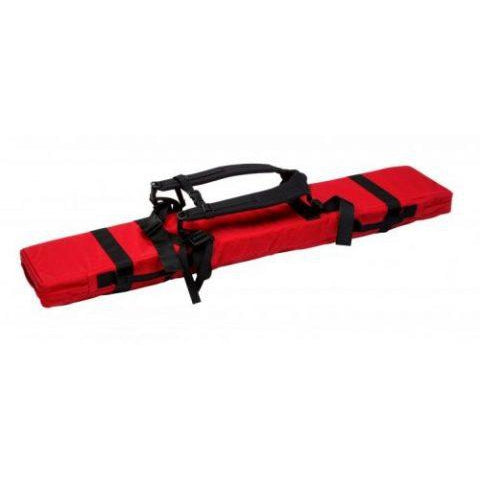

A new removable backpack carrying system for Arizona Vortex Leg Bags, the Sedona Shoulder Harness quickly attaches or detaches from the leg bag for extended carries into the backcountry or up long flights of stairs up high-rise buildings. The harness is constructed of high-strength Cordura^® nylon with comfortable padded shoulder straps, sternum strap, back panel and waist belt, each lined with breathable cloth. Tension-Lock waist buckles at each hip make it a “cinch” to tighten the waist belt and hold the adjustment securely, yet allow for quick, easy release when needed. Order one shoulder harness for each leg bag (3 leg bags in Arizona Vortex Bag System.)

FOR USE WITH (Items Sold Separately)
Arizona Vortex Bag System

Specs

Skedco now offers a complete conversion kit that includes six patented AustriAlpin Cobra™ quick release buckles.  These lightweight aluminum side-release buckles are dependable and strong enough to meet the needs of securing a patient into a Sked® stretcher without the danger of breakage. The buckles are rated at 3,000 lbs. and are difficult to release while under tension. By using the Cobra buckle system, you will no longer have to weave the webbing through the buckles when packaging a patient, therefore patient packaging is often done in about half of the time as when using the original steel buckles. The Cobra buckle straps girth-hitch onto the Sked stretcher for quick and easy installation.

Additional Skedco Products
If this Skedco product does not fit your needs, CMC carries others that may. Other Skedco products CMC has offered are the SKED-EVAC Industrial Tripod, Sked Tripod Winch Bracket, Skedco Oregon Spine Splint II, Half-Sked Patient Drag, HMH Sked Stretcher, Sked Stretcher Flotation System and the Sked Basic Rescue System with or without Cobra Buckles. Skedco’s aircraft-grade aluminum SKED Tripod and Skedco’s plastic stretcher, litter products can be utilized in many technical rope rescue and industrial rope access operations in confined space, search and rescue (SAR), fire rescue, air operations, swiftwater, urban rescue (USAR) and work at height.

Specs

Manufactured by Skedco, makers of the Sked Stretcher, the Sked-EVAC tripod features aircraft-grade, gold-anodized aluminum legs and a cast-aluminum head. Three heavy-duty rigging anchors, located in the center, have exceptionally large holes for easy attachment. Legs adjust in 5-in (127-mm) increments for a maximum height of 10 ft (3 m) and a minimum length for transport of 7 ft (2.1 m). The cast ladder feet swivel and come with a choice of a sure-grip rubber pad or a point for embedding in a soft or slippery surface. Holes in the feet allow the tripod to be bolted into position. A safety chain prevents leg movement and adjusts with a screw link. The optional Winch Bracket connects DBI/Sala Salalift II Winch or SRL to a Sked-EVAC Tripod.

Specs

Sked-EVAC Tripod Proof Loads
These proof loads are from independent, third-party testing and determine the repeatable load rating (not the ultimate breaking strength) for the Sked-EVAC Tripod.

Height / Strength

• 98 in (249 cm) / 42 kN (9,500 lbf)
• 102 in (259 cm) / 37 kN (8,500 lbf)
• 107 in (272 cm) / 33 kN (7,500 lbf)
• 112 in (284 cm) / 31 kN (7,000 lbf)
• 115 in (292 cm) / 26 kN (6,000 lbf)
• 119 in (302 cm) / 23 kN (5,280 lbf)

Additional Skedco Products
If this Skedco product does not fit your needs, CMC carries others that may. Other Skedco products CMC has offered are the Sked Tripod Winch Bracket, Skedco Oregon Spine Splint II, Half-Sked Patient Drag, HMH Sked Stretcher, Sked Stretcher Flotation System, Sked Basic Rescue System with or without Cobra Buckles and the SKED-EVAC Aluminum Cobra Buckle Conversion Kit itself. Skedcos aircraft-grade aluminum SKED Tripod and Skedcos plastic stretcher, litter products can be utilized in many technical rope rescue and industrial rope access operations in confined space, search and rescue (SAR), fire rescue, air operations, swiftwater, urban rescue (USAR) and work at height.

The small head and extra-long aluminum legs make this tripod the perfect choice for simplicity and performance. When fully extended, the head is ten feet high and the tripod can support a load up to 5280 lbf. The load capacity increases as the leg extension is reduced.

Specs

• Legs are adjustable in 5 increments
• Fully extended height of 10 ft at the anchors
• Tripod legs are secured with chains to prevent them from spreading under load
• 3 anchor points
• Winches and other attachments available"

Vinyl transport bag for storing and carrying your Sked Evac Tripod (SK700). Features heavy duty vinyl coated nylon material and an extra long zipper along its full length and across it's ends to facilitate easy repackaging. It has a pocket inside in the center to store the bag of chain which comes with the tripod, preventing the chain from sliding to one end when the tripod is carried. There are handles in the center and on each end of the bag. This bag has a 9" diameter and a 7'1" length, and will make nearly any brand of tripod easier to carry. Made in USA.

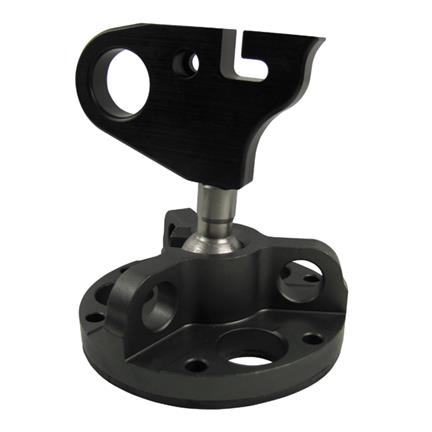

The new Articulating Foot swivels on a stainless steel ball. For extreme wide leg angles, the foot can rotate 90 degrees to the flat position.

Specs

• Rubber pad allows use on surfaces such as concrete
• Foot may be attached to a surface with screws, bolts, or spikes
• Foot may be lashed or clipped to other objects using three large holes
• Made in the USA

Specs

• 4 SHCS Alloy Bolts
• 4 Nylok Nuts

The new Capstan Winch Bracket is designed for use with the Harken 40.2ST Capstan Winch. This bracket is predrilled and includes all hardware for mounting the Capstan. It may be mounted on any grey leg tube section on the TerrAdaptor.

Specs

• Solid heat treated aluminum
• Hard-anodized finish
• Choose from grey or black
• Carabiner hole functions as a sticht plate for 1/2 rope
• Available with ears or without"

Specs

• 2 Lash Ring with Coupling Pins
• Leg kit complete with Ball Foot, Hobble Plate & Basket
• TerrAdaptor User Guide

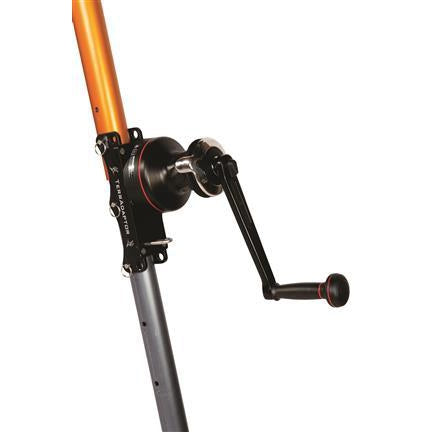

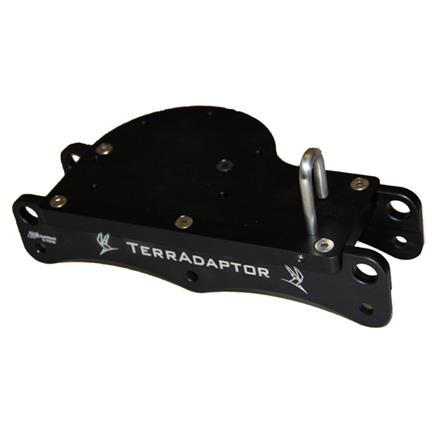

The new SMC TerrAdaptor Capstan Winch System mounts on any grey leg tube section in any position on the TerrAdaptor multi pod. A stainless steel rope guide ensures that the rope enters the capstan at the correct angle for the greatest grip. Clip points on the front and rear of the bracket can be used for progress capture devices such as a rope grab or a prusik.

Specs

• Made from anodized aluminum
• Includes a Harken® 40.2ST two speed, self-trailing capstan winch
• Stainless steel rope guide
• Designed to work with progress capture devices
• Engineered TerrAdaptor winch bracket
• Made in the USA

The new SMC TerrAdaptor‚ Capstan Winch System mounts on any grey leg tube section in any position on the TerrAdaptor‚ multi pod. A stainless steel rope guide ensures that the rope enters the capstan at the correct angle for the greatest grip. Clip points on the front and rear of the bracket can be used for progress capture devices such as a rope grab or a prussik.

Specs

• Made from anodized aluminum
• Includes a Harken 40.2ST two speed, self-trailing capstan winch
• Stainless steel rope guide
• Designed to work with progress capture devices
• Engineered TerrAdaptor‚Ñ winch bracket
• Made in the USA
