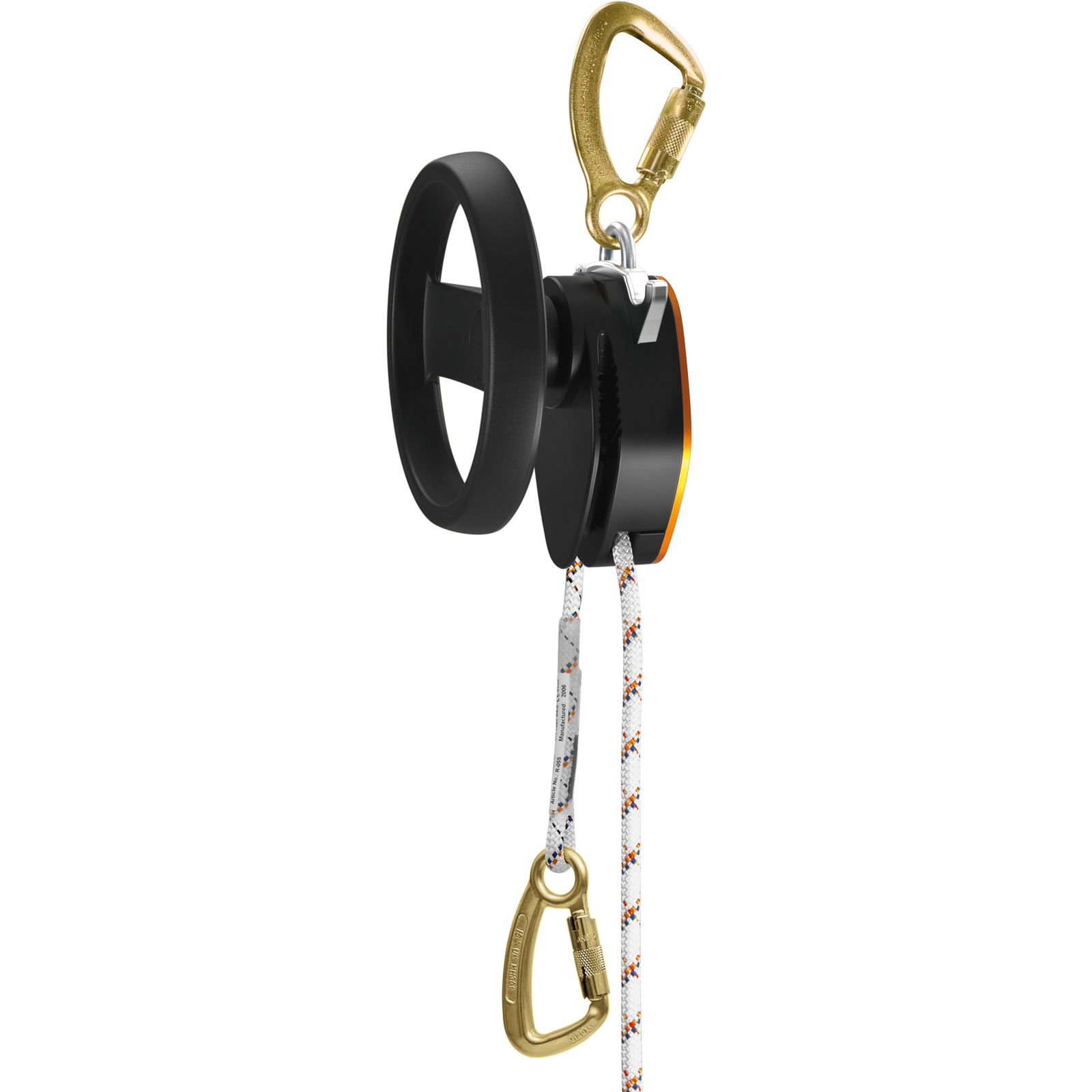

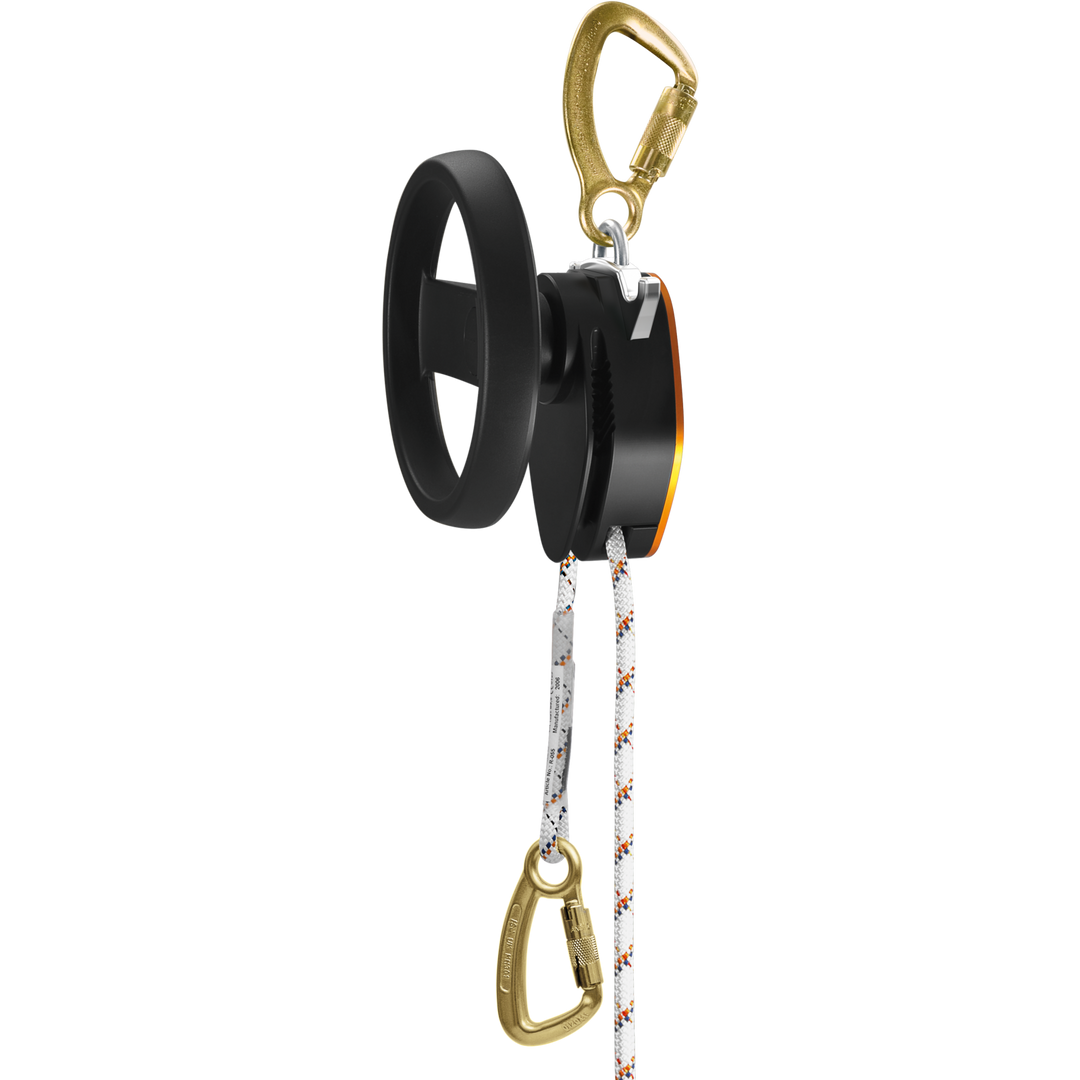

MILAN 2.0 HUB is THE standard rescue device in the industry with additional lifting function. With the help of the hand wheel, the casualty can be lifted over a short distance to release his lanyard and lower him safely. The device is optimised for personal rescue. Note: When working at height, a suitable rescue concept based on a risk assessment is essential. MILAN offers a wide range of applications for different rescue scenarios. To master these techniques, users must be carefully trained by an instructor who has been specially trained on the device.
Key features:
• The standard rescue device
• With additional lifting function
• User weight of up to 280 kg with redirection Intuitive operation due to rope guide and brake in the housing
| Weight | 11.04 lbs |
|---|---|
| Compliant |
ANSI Z359.4:2013, DIN EN 1496-A:2017, DIN EN 341-1A:2011, MEETS CSA Z259.2.3-1B:2012 |
| Color |
Orange / Black / White |
| Abseiling Speed |
0,90 m/s |
| Abseiling Height |
500,00 m |
| E-class Number |
40-02-01-06 |
| Max. Service Life |
20 Years |
| Max. Number Of Persons |
2 |
| Rated Load |
260 KG |
| Temperature |
60 °C – -35 °C, 140 °f – -31 °f |
| Suspension Element |
KM9 |
| Material |
Aluminum, Polyamide, Steel |
| Weight |
11.04 lbs (5007 g) |
